MAX 1 4''-TD05H-18G-7+7 6cm Bolt-On Low Mount Turbo for Nissan Patrol TD42
MAX 1 4''-TD05H-18G-7+7 6cm Bolt-On Low Mount Turbo for Nissan Patrol TD42
Couldn't load pickup availability
BRAND NEW MAX 1 Performance

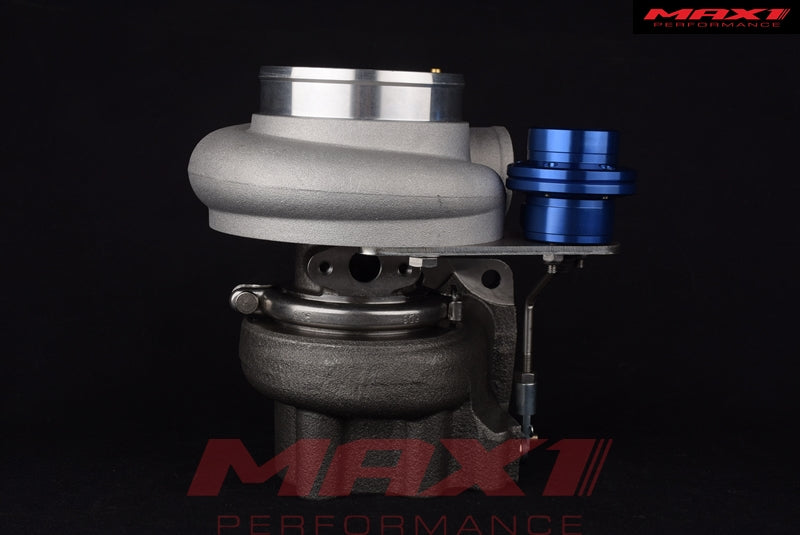

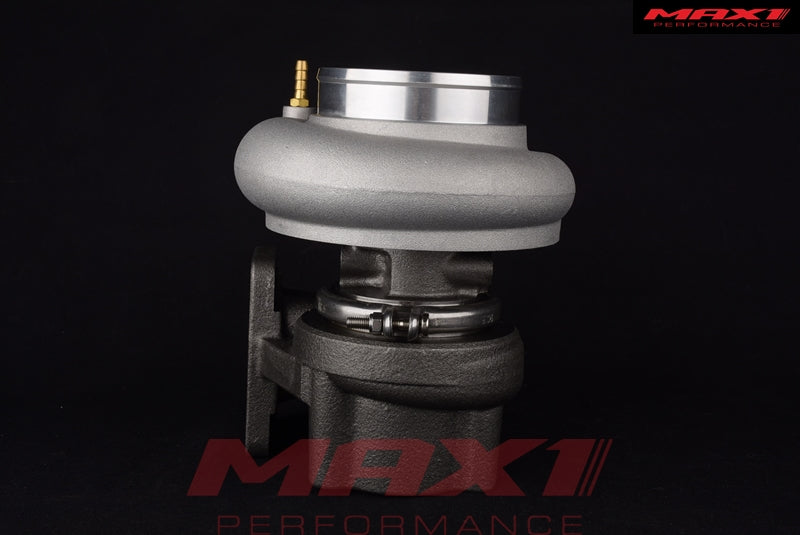

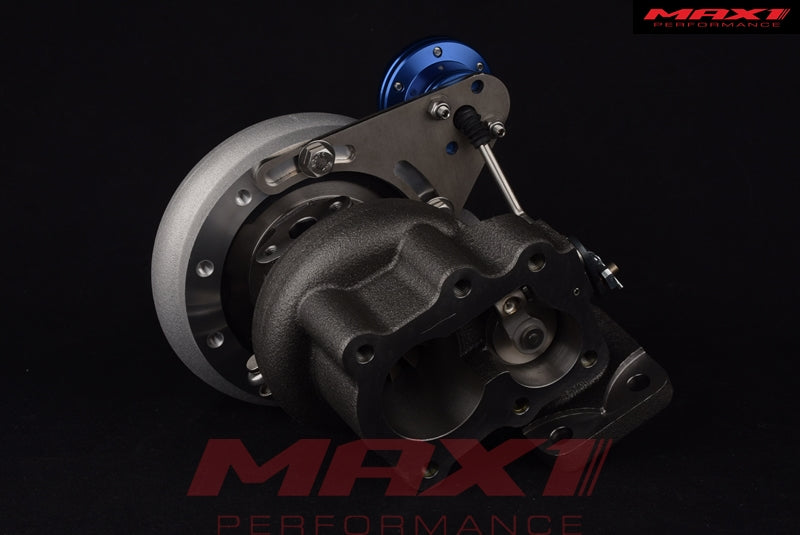

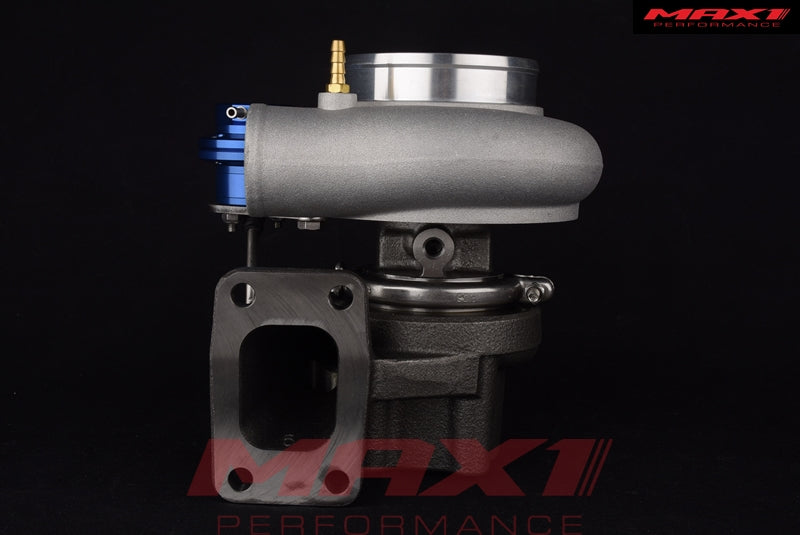

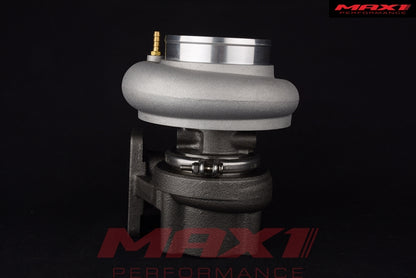

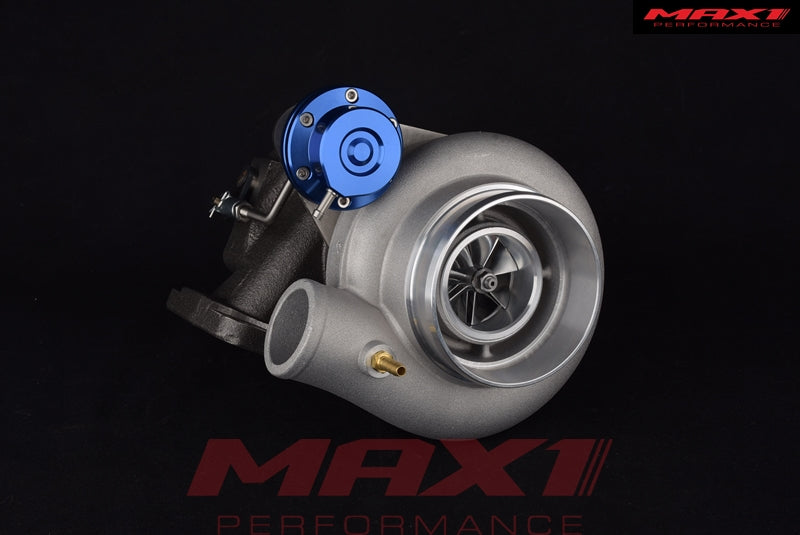

MAX 1 4''-TD05H-18G-7+7 6cm Bolt-On Low Mount Turbo for Nissan Patrol TD42 Oil-Cooled
The MAX 1 Performance TD42 turbo is completely designed/developed in house. We have upgraded our turbo based on the original Mitsubishi TD05 turbo system, assembled with a dual port thrust bearing and heavy duty thrust collar/spacer, we have enhanced its durability, reliability and performance.
The turbo is suitable for Nissan Patrol 4.2 diesel engines and Toyota Landcruiser 4.2 1HZ engines.
MAX 1 Performance TD42 upgrade turbo comes in 4 configurations dependents on your power goals and current supporting modifications; below you can find the HP rating for further choosing reference.
16g Mod Turbo: up to 180hp
18g Mod Turbo: 200hp to 230hp
21L Mod Turbo: 250hp to 280hp
23L Mod Turbo: 280hp to 340hp
Fits the following:
| Turbo P/N | - |
| Model | TD05H-4""-18G |
| Compressor Housing Spec | Nozzle area: AR.60 Inlet: 4"" non anti-surge Outlet: 2"" |

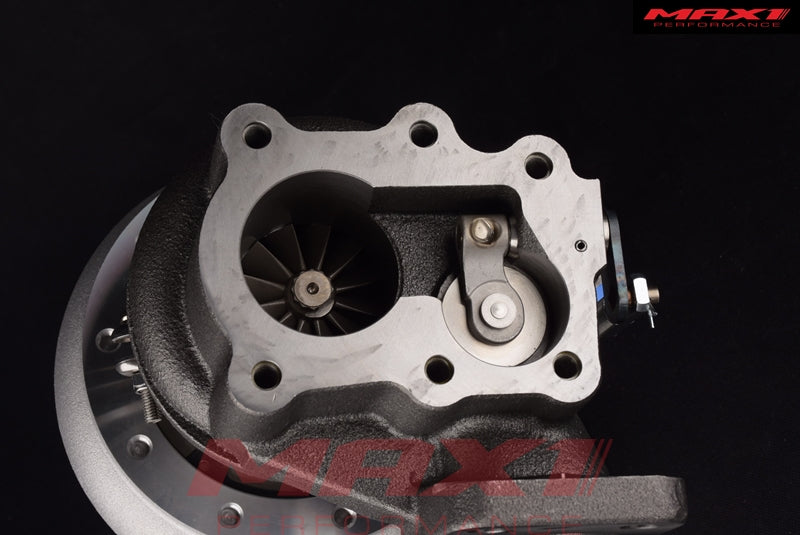

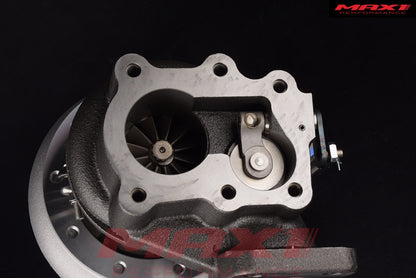

| Turbine Housing Spec | Nozzle area: 6cm / AR.41 Inlet: T3 Outlet: TD42 bolt-on to the stock dump pipe Wastegate: internal gated |

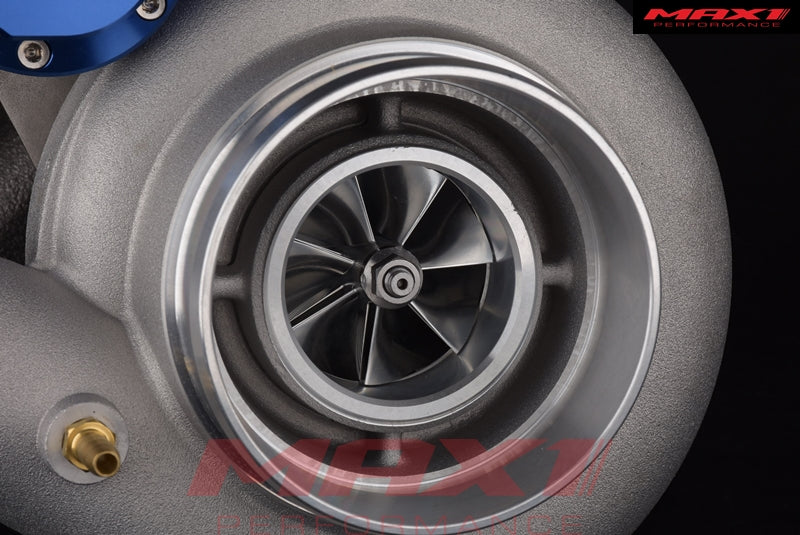

| Compressor Wheel Spec | 50.3 / 68.0 mm (7+7 Blade, 18G Billet Wheel with Extended Tip) |
| Turbine Wheel Spec | 49.2 / 56.4 mm (12 Blade performance high inconel) |
| Bearing Type | Journal Bearing (Performance Thrust-bearing type) |
| Cooling Type | Oil-cooling |

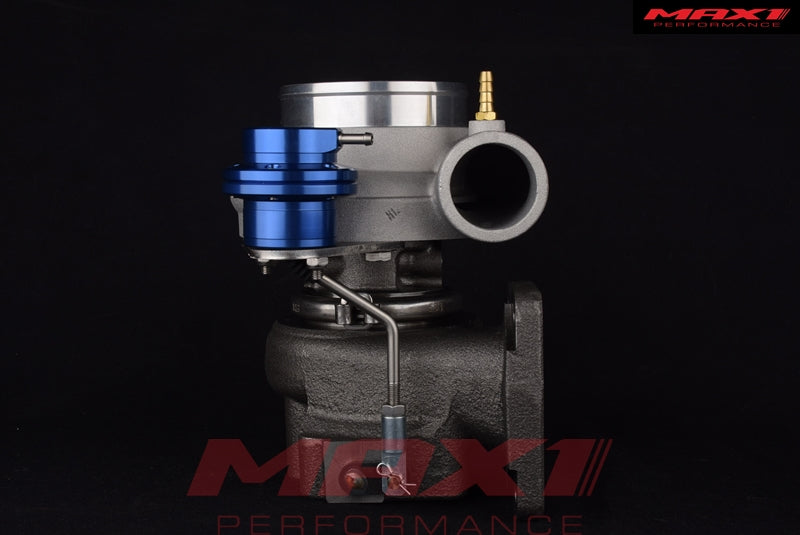

| Wastegate | 0.8 bar spring is pre-installed on the adjustable actuator. The rest springs are included in box for exchange if needed. |
| Application | Nissan Safari / Patrol GQ TD42 Diesel Low Mount Universal turbo for performance use. |
| Output | 200hp to 230hp |

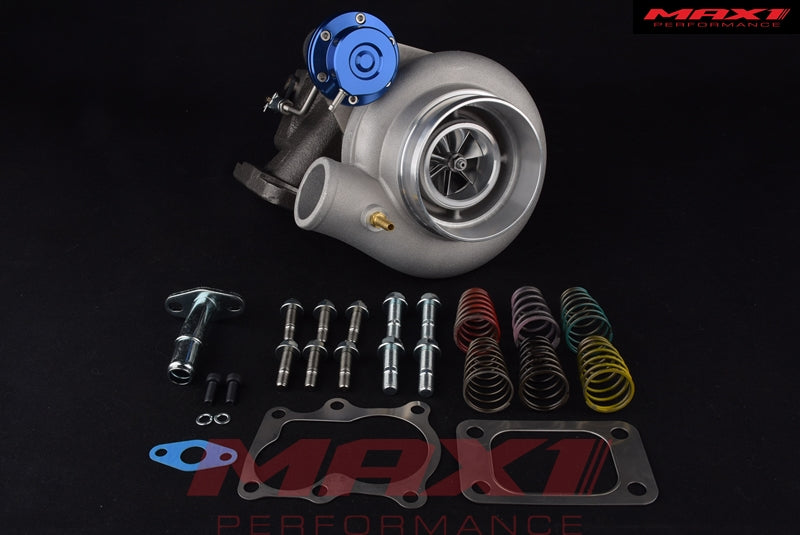

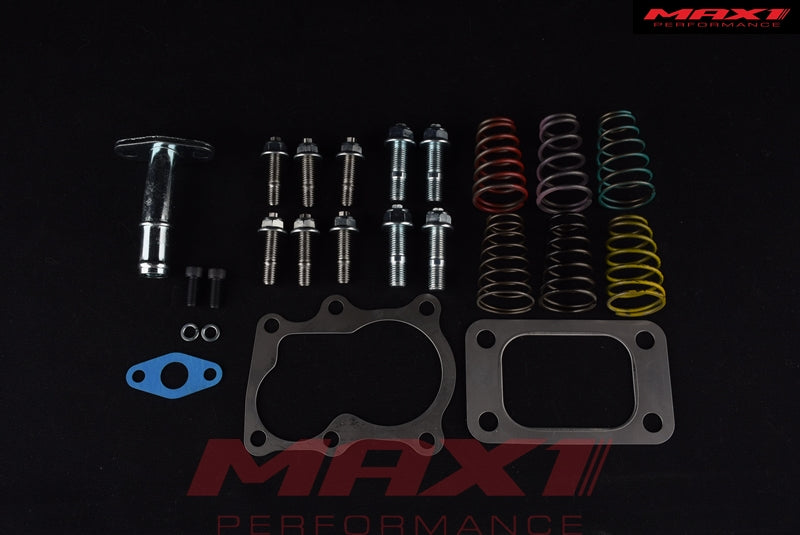

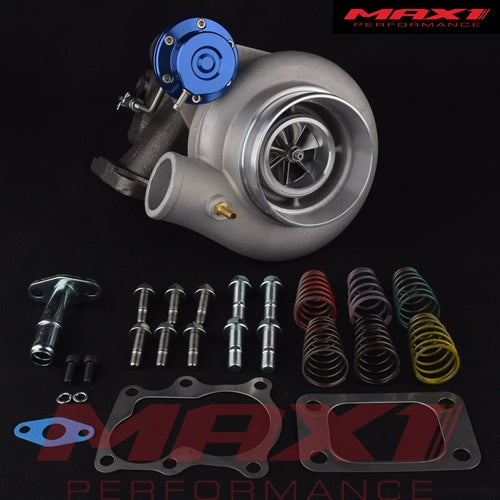

| Package Includes | 1 x Oil Return Pipe Kit 1 x Turbine Inlet Gasket 1 x Turbine Outlet Gasket 6 x M8x1.25 Stud Kit Everything shown on picture is included |
| MAX 1 No. | 000122-0009-07 |
Please use the above information to determine if the part(s) in this listing fits your vehicle. Do not fully rely on the MAX 1 ‘compatibility’ feature.
The most reliable way to make sure of the compatibility of the model of turbocharger is finding the part number from the nameplate of your old turbocharger.
Power Gains
Horsepower and Torque: Upgrading to a larger or more efficient turbo can significantly increase both horsepower and torque. Many TD42 enthusiasts report gains of 20-50% in power, depending on the specific turbo used and supporting modifications.
Fuel Efficiency
Optimized Air-Fuel Ratio: A better turbo can improve the air-fuel mixture, leading to more complete combustion. This can enhance fuel efficiency, particularly during highway cruising or when under load.
Throttle Response
Reduced Turbo Lag: We have redesigned our turbo to have a much better match with the TD42 engine.
This results in a much faster turbo spool and reduces any turbo lag, compared to the OE turbocharger. In other words, our turbo will provide quicker acceleration and a more responsive driving experience.
Towing and Load Handling
Increased Torque: The added torque from a turbo upgrade is particularly beneficial for towing and hauling heavy loads. It helps maintain speed on inclines and improves overall drivability underload.
Performance at Altitude
Compensating for Thin Air: At high altitudes, thinner air can lead to power loss in naturally aspirated engines. A turbo can help compensate for this by forcing more air into the engine.
Tunning Flexibility
Custom Tunes: Upgraded turbos often come with options for custom tuning. This allows for adjustments to fuel maps and timing to maximize performance and ensure reliability.
Direct bolt on
We offer various types of turbine outlet patterns:T3-Vband/ T3-3 bolt/ T3-V band. Most customers can find easy access to the installation.
